IRFP9240PBF P-Channel MOSFET 200V 12A 500 mOhms TO-247-3 Transistors

Shenzhen Retechip Electronics Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

IRFP9240PBF P-Channel MOSFET 200V 12A 500 mOhms TO-247-3 Transistors

  • 1
  • 2

Brand Name : Vishay

Model Number : IRFP9240PBF

Place of Origin : Original

MOQ : 5 PCS

Price : Negotiate

Payment Terms : T/T, Western Union, MoneyGram,GooglePay

Supply Ability : 35000pcs Per Mouth

Delivery Time : 7-14 days

Packaging Details : 500Pcs/Box

Product Category : IRFP9240PBF

Description : P-Channel MOSFET 200V 12A TO-247-3 Transistors

Certification : Original Factory Pack

Warranty : 3 Months

Shipping by : DHL\UPS\Fedex\EMS\HK Post

Unit Weight : 0.211644 oz

Contact Now

IRFP9240PBF P-Channel MOSFET 200V 12A TO-247-3 Transistors

FEATURES

•Dynamic dV/dt rating

•Repetitive avalanche rated

•P-channel

•Isolated central mounting hole

•Fast switching

•Ease of paralleling

•Simple drive requirements

•Material categorization: for definitions of compliance

DESCRIPTION

Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-247AC package is preferred for commercial-industrial applications where higher power levels preclude the use of TO-220AB devices. The TO-247AC is similar but superior to the earlier TO-218 package because of its isolated mounting hole. It also provides greater creepage distance between pins to meet the requirements of most safety specifications.

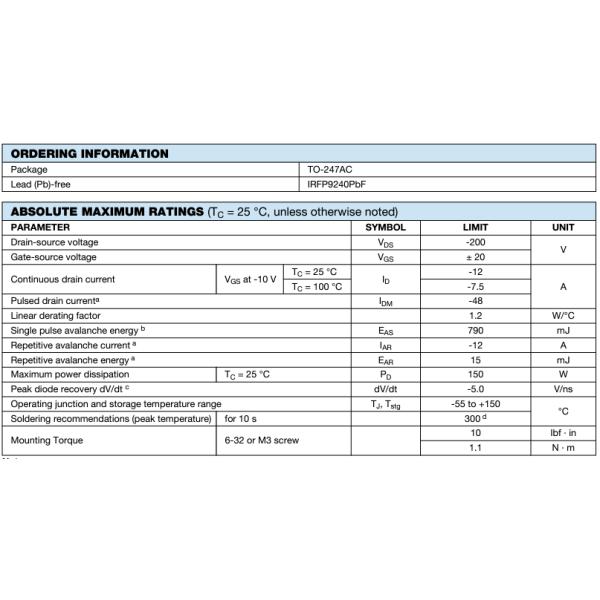

IRFP9240PBF P-Channel MOSFET 200V 12A 500 mOhms TO-247-3 Transistors

Notes a. Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11) b. VDD = - 50 V, starting TJ = 25 °C, L = 8.2 mH, Rg = 25 Ω, IAS = - 12 A (see fig. 12) c. ISD ≤ - 12 A, dI/dt ≤ 150 A/μs, VDD ≤ VDS, TJ ≤ 150 °C d. 1.6 mm from case

Specifications

Product Attribute Attribute Value
200 V
12 A
500 mOhms
- 20 V, + 20 V
2 V
44 nC
- 55 C
+ 150 C
150 W
Configuration: Single
Fall Time: 38 ns
Forward Transconductance - Min: 4.2 S
Rise Time: 43 ns
Typical Turn-Off Delay Time: 39 ns
Typical Turn-On Delay Time: 14 ns
